| Airflow： | 500-3000ml/min/cm² |
| IP Rate： | IP67-IP68 |
| Vent Membrane Material： | ePTFE |
| Vent Membrane Features： | Waterproof,Dustproof,Breathable |
| Vent Membrane Color： | White |
| Temperature： | -40℃~115℃ |
| Material： | TPE |
 |

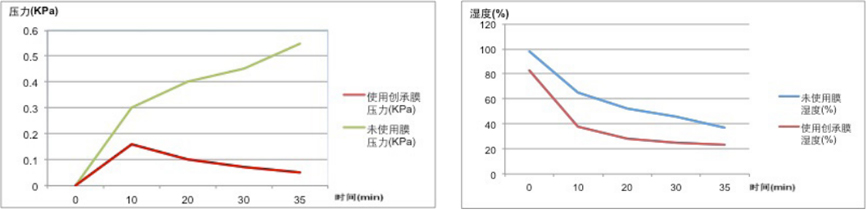

1. After 30 minutes of lighting, the humidity of unused waterproof breathable cap is 98%, and that of used waterproof breathable cap is 82%. 2. After turning out the light, after 35 minutes, the humidity of the non-used waterproof breathable cap dropped to 37%, and the humidity of the use of the innovative waterproof breathable cap dropped to 23%. |
What are the main applications of waterproof and breathable vent plugs?
At present, it is mainly used in automobile parts and other fields.
How to choose waterproof vent plugs correctly?
The selection of waterproof air permeable plug is related to the use direction, working temperature, installation size, air permeability requirements, protection requirements, etc. Please consult the sales staff of the company.
What is the air permeability of the waterproof vent plug?
The air permeability is determined by the material of waterproof breathable vent membrane, the effective ventilation area and the difference between inside and outside pressure.
How to test the performance of waterproof vent plugs?
Waterproof and air permeability performance have professional equipment testing, simple testing methods can consult company sales staff.

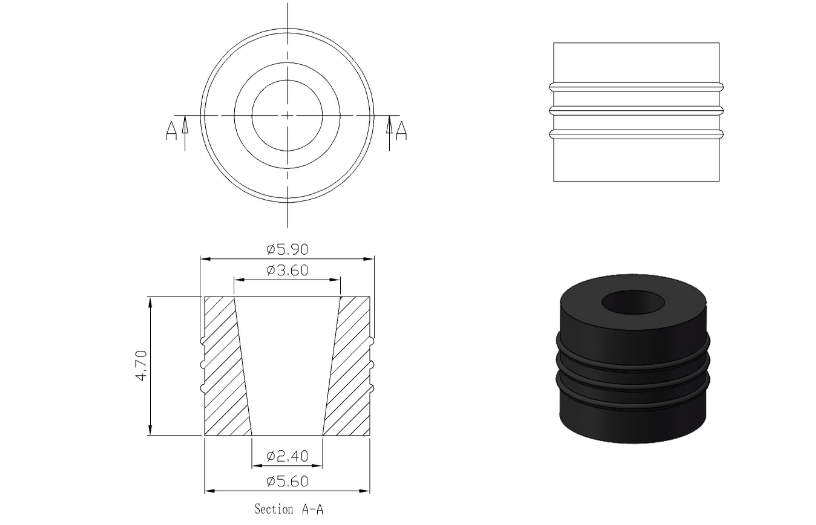

X156防水透气塞安装配合尺寸图
确保安装表面清洁，没有油渍、颗粒和其它污染物。如有必要，可用异丙醇清洗安装表面。安装前确保表面干燥。
